Electric poultry feed hammer mill/straw hay hammer mill/hammer mill for spices

FOB Reference Price:Get Latest Price
$1,642.00 - $8,759.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
FX-600
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 7 Negotiable
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
wood working industry
Condition:
New
Place of Origin:
Henan, China
Brand Name:
FUSION
Voltage:
380v
Power(W):
30kw
Dimension(L*W*H):
1850*1200*1470mm
Weight:
600kg
Certification:
CE/ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Name:
poultry feed hammer mill
Application:
Wood Crushing Mill
Capacity:
800-1200kg/h
knives:
4
Rotating speed:
2900r/min
Hammer number:
40/30
Power of the main Motor:
30kw
Feeding size:
600*300mm
The size of screen:
6mm
Packing:
wooden case
Supply Ability
Supply Ability:
100 Set/Sets per Month poultry feed hammer mill samples are available
Packaging & Delivery
Packaging Details
1.wooden package for standard export
2.Or as your specific demands
Port
qingdao tianjin shanghai guangzhou
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 7 To be negotiated

Electric poultry feed hammer mill/straw hay hammer mill/hammer mill for spices

Product Description

 1. Brief introduction of the hammer mill:

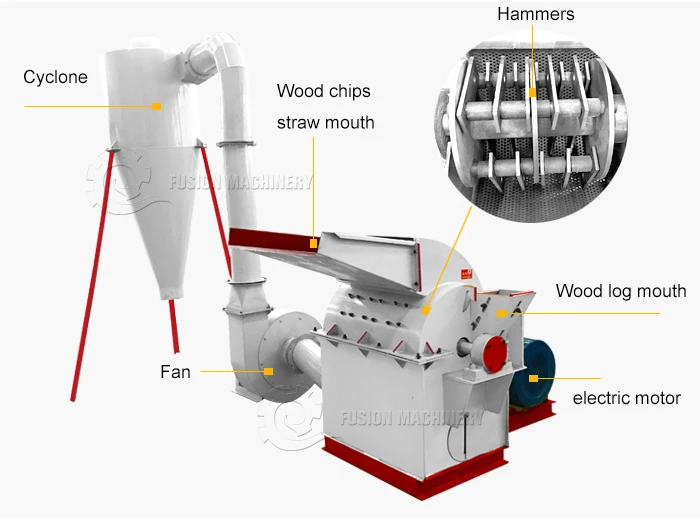

The hammer mill crusher consists of three parts: the body, the middle body and the lower body. The middle body is equipped with a triple stator large circle, a pulverizing cutter and a fineness analyzer. The main unit uses an alloy cutter head. It has high wear resistance and thus increases production. It has coarse pulverization, fine pulverization, and centrifugation to pulverize. The motor drives the Crusher hammer mill rotor to run at high speed, so that the high-speed airflow generated by the machine produces high-strength impact force, compression force and cutting force on the pulverized material, and achieves a unique pulverizing function.

2.Technical parameters:

Model

500

600

800

1000

1300

1500

Feeding size  (mm)

500*280

600*300

800*350

1000*450

1300*450

1500*450

Hammer number

30/20

40/30

50/40

66/48

72/54

90/72

Hammer size(mm)

180*60*10

180*60*10

230*60*10

230*60*10

230*60*10

230*60*10

Knife mouth size (mm)

220*180

220*180

240*200

240*200

260*230

280*230

Knife number

4

4

4

4

4

3

Knife size (mm)

120*70*10

120*70*10

120*70*10

150*80*10

230*120*12

230*120*12

Rotating speed(r/min)

2900

2900

2600

2400

2400

2400

Power of the main Motor (kw)

22-30

30-37

37-45

55-75

75-90

90-110

Power of the fan ( kw)

no

no

7.5

11

15

15

Capacity(kg/h)

500-800

800-1200

1500-2000

2000-3000

3000-4000

4000-6000

The size of  screen (mm)

6mm

6mm

6mm

8mm

8mm

8mm

Note

For different raw materials, the capacity is different . Each model has can also be customized to be single and double mouth according to customer's requirements.

3.Application :

The Crusher hammer mill is suitable for the crushing of the following materials: bamboo powder, husk, Chinese herbal medicine, bark, leaves, wheat bran, konjac, black stalk, rice husk, corn cob, straw, starch, grain, shrimp skin, fish meal, shell , seaweed, dehydrated vegetables, hawthorn, dried ginger, garlic slices, pumpkin powder, seasoning, jujube, paper, circuit board, plastics, chemical raw materials, seawater products, condiments, feed, mica, graphite, bentonite, perlite, distiller's grains , etc. Difficult characteristic material processing, is an ideal crusher in the chemical, building materials, medicine, health care, breeding, food, mosquito coils and other industries. (Note that the Crusher hammer mill is not suitable for the pulverization of flammable and explosive materials)

4.work principle:

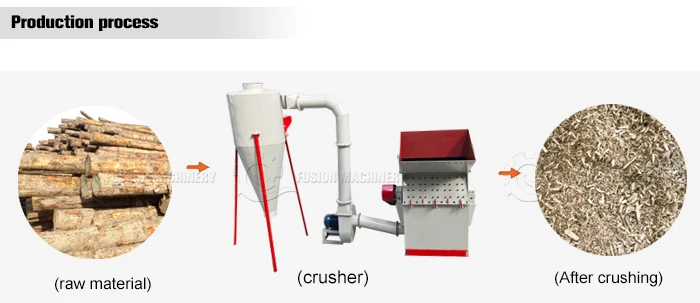

The material is fed from the feed inlet, and the material is gradually pulverized under the action of the high-speed rotating hammer striking and the sieve plate friction, and passes through the mesh hole under the action of centrifugal force and air flow, and is discharged from the base discharge port by the fan.

5. Advantages of hammer mill:

 The whole set of equipment is driven by only one motor. The structure is simple, the arrangement is compact, the price is cheap, the work is stable, the energy consumption is small, the output is high, the finished product quality is good, and the processing cost is low.




Packaging & Shipping



1. Packing:  PP film wrapped around the machine and carefully packed in wooden case to focus on protecting damageable parts.

2. Shipping: From port of Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We also accept land, air, sea transport and international multimodal transport.

3. Clearance: Our long history makes us the one of the first and most knowledgeable providers of the equipment, our main customers hail from; Canada, the United States, Brazil, Argentina, Japan, Philippines, Australia, Russia, Thailand, the UAE, Poland, Spain, Germany, India, etc.

Our Services

 1. We always welcome customers to visit our manufacturing factory and get to know more about us.

2. Customers can see all the manufacturing workflows when they visit our factory.

3. We also send engineers to the customer's place to help with the installation!

FAQ

Are you confused about the following questions?

Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A:We are alibaba legitimate certification company (VIP) and we have a lot of money as credit

guarantee. We support payment terms: Trade insurance,L/C.Escrow, to ensure your safety.

1.When will you ship the machine?

normally 10-15 working days .

2.How can I buy this machine?

first talk all machines details with our sales person, then talked abt the price, after confirming the prices.

you can choose the payment terms Trade assurance/TT/Escrow/Western Unionetc.

then you arrange deposit, after gettting the deposit, we produce the machine.

last, packing and shipping the machine for you.

Company Information

 Zhengzhou Fusion Machinery Equipment Co.,Ltd was founded in 2013, we are a professional factory to manufacture wood process machine, Fruit&vegetable process machine and waste energy recycling machinery .Our mission is to provide best service to our customers and concentrate on building a long-term partnership with our customers which leading us to create a win-win situation.
